Key Features

• Intel® Pentium®/Celeron®/Atom™ Processor

• One 204-pin SODIMM Socket Up to 8GB DDR3L 1866MHz SDRAM

• Onboard u-box M8N concurrent GNS module (GPS/QZSS, GLONASS, BeiDou)

• Rich I/O, 1-DP, 1-LVDS, 1-DC-Out, 1-8-bit GPIO, 2-Line-out, 2-Mic-in, 2-LAN, 2-COM, 4-USB

• Rugged Fanless Design Compliant with MIL-STD-810G

• Wake on RTC/SMS Via WWAN Module

• Wide Range DC Power Input from 9 ~ 36V

• Power Management and Low Voltage Protection Design

• Optional CAN modules supports OBD II, SAE J1939 or J1708

• Fanless Operating from -20/40 ~ 70°C

• Supports TPM 1.2/2.0 (Factory Option), SD card(SD 3.0)

Specifications

• CPU: Intel® Pentium®/Celeron®/Atom™ Processor

• Memory: 1 x 204-Pin DDR3L 1866MHz SO-DIMM up to 8 GB

• Storage Device:

• 1 x 2.5" Drive Bay (SATA III)
• 1 x M.2 (SATA III)
• 1 x SD (3.0)

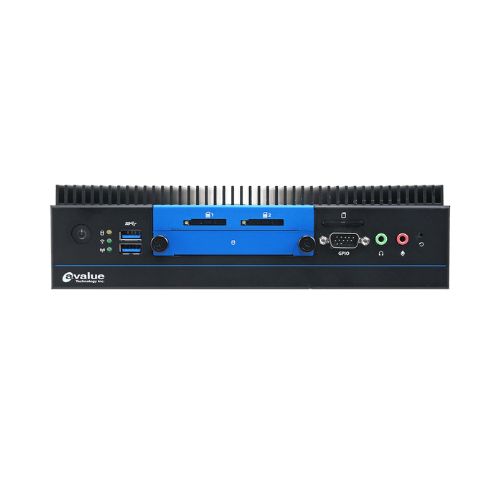

• I/O Port (Front):

• 1xPower Button
• 1xReset Button
• 2xUSB
• 1x8-bit GPIO
• 1xMic-in
• 1xLine-Out
• 3xLED
• 2xSIM Holder
• 1xSD Card

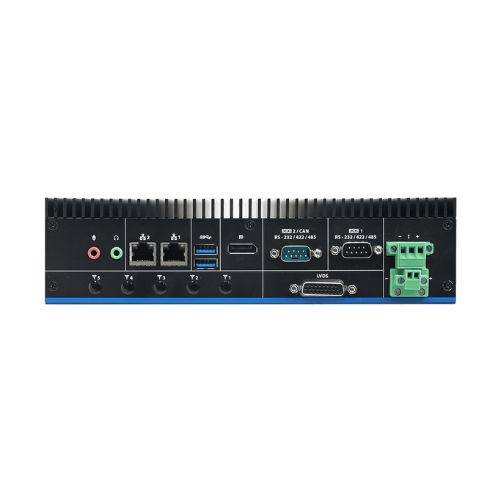

• I/O Port (Rear):

• 1xDP
• 2xCOM
• 2xGb LAN
• 2xUSB
• 1xLVDS
• 1x Line out
• 1xMic in
• 1xDC Out
• 5xAntenna

• Expansion

• 1 x Avalue 80-Pin IET Interface
• 2 x Mini PCIe socket(PCIe/USB)
• 1 x CANBus module Interface

• Power Input: Typical 12/24Vdc (+9~36V)
60W Adapter & Power cord as option

• Operating Temp. : -40 ~ 70°C

• Vibration : 5Grms (SSD); Shock: 50G(SSD)

• Software Support:

• Win 10, Linux
• Android (by request)

• Certificate: CE, FCC Class B, e13 Mark, ISO7637-2

• Dimension  (W x L x H) : 239mm x 186mm x 62mm

• IP Rating: IP50
