Product Information :
Name :
HPM-621UA Category :
- คอมพิวเตอร์และอุปกรณ์ ซอฟแวร์ ฮาร์ดแวร์
Sub - Category :
- Server Board
Brand :
Avalue Model :
HPM-621UAProduct Type :
- สินค้า, ผลิตภัณฑ์
Short Description :

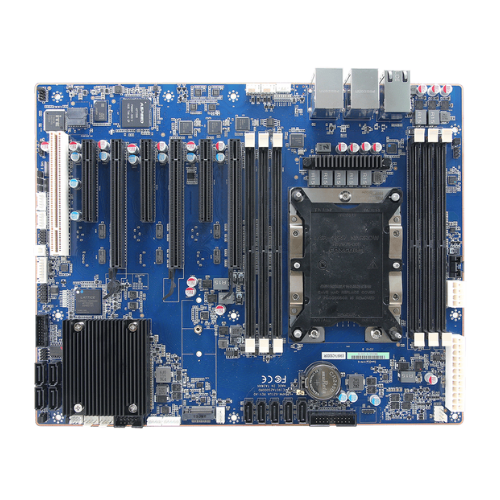

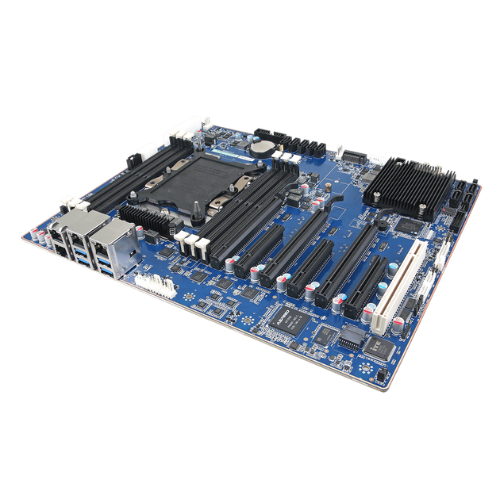

Single 1st and 2nd Generation Intel® Xeon® Scalable Processor ATX Server Board with Intel® C621 Chipset and IPMI2.0. Processor supports up to 150W TDP
Product Detail :
Features:
- Intel® single 2nd Gen. Xeon® Scalable Processors, ATX Server Board with Intel® C621 Chipset
- 6 x DDR4 2933/ 2666/ 2400/ 2133 ECC RDIMM/ LRDIMM up to 384GB
- 3 x PCIe x16 Slots or 8 x PCIe x8 Slots, 1 x PCI 3.0 Slot
- 9 SATA III, 2 x internal USB 3.2 Gen1 ports

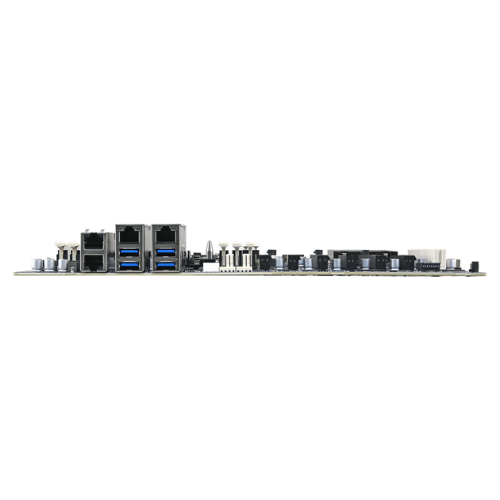

- 4 x 1GbE Ethernet ports, LAN1 shared with IPMI (IPMI 2.0 support)
- 4 x external USB 3.2 Gen1 ports
Order Information:
- HPM-621UAA-A1R
ATX 1xLGA3647 Intel 1st/2nd Gen. C621 w/6xDDR4/3xPCIe x16/4x1GbE/6xUSB3.2/9xSATA3.0
