E-Catalog > Fanless Tiny System > NUC-EHL

Features

• Intel® Celeron® Processor J6412
• Single DRAM Socket, Max. Up to 32GB DDR4 3200MHz
• Rich I/O, 2-COM, 2-HDMI, 2-LAN (2.5GbE), 6-USB3.0, Micro SD slot, Kensington Lock
• Fanless operating from 0~60°C
• On Board TPM 2.0, Default Table Stand
• IP40, HDMI2.0b, Wi-Fi (CE/FCC) certificated

Specifications

• CPU: Intel® Celeron® Processor J6412
• Memory: 1 x 260-Pin SO-DIMM Socket, Max. Up to 32GB DDR4 3200MHz
• TPM2.0

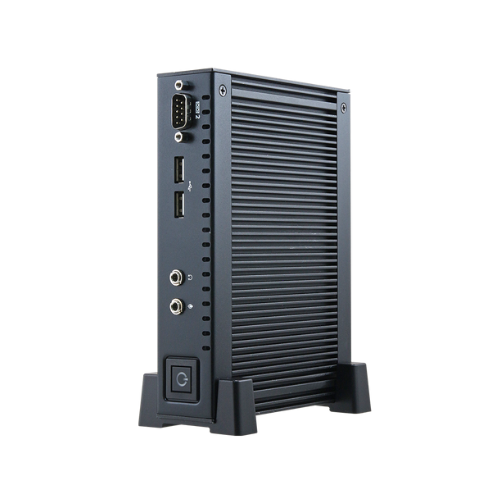

• I/O Port (Front):
  - 1xPWR button
  - 1xRS232/RS422/485
  - 2xUSB
  - 1xMic-in
  - 1xLine-out

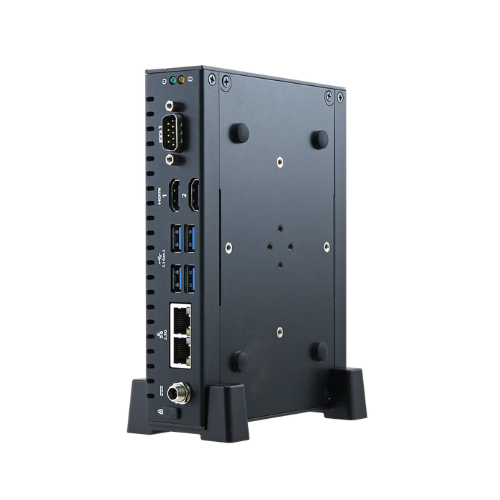

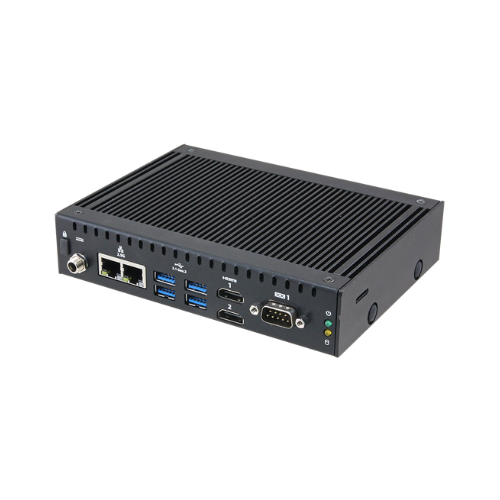

• I/O Port (Rear):
  - 2xLED
  - 2x2.5Gb LAN
  - 4xUSB
  - 2xHDMI
  - 1xDC IN
  - 1xKensington lock
  - 1xRS232/RS442/485
• Expansion
  - 1xM.2 2230 (Key-E)
  - 1xM.2 2242/3042 (Key-B, PCIe)
  - 1xM.2 2242 (Key-B, SATA)
• Storage Device
  - 1xM.2 2242 (Key-B)

• Power Supply
  - Power Input: Typical +12Vdc
  - 60W Adapter as default, PWR cord as option
  - Adapter PN: ACC-ADP-060N-14R/ACC-ADP-060N-08R
  - Power cord: depends on regions
• Operating Temp. : 0°C ~ 60°C (32°F ~ 140°F)
• Dimension  (W x L x H) : 170mm x 125mm x 36mm
• Software Support
  - Windows 10, Windows 11
  - Linux
• Certification
  - CE, FCC Class B, UKCA
  - Wi-Fi 6E RF certified
• IP Rating: IP40
