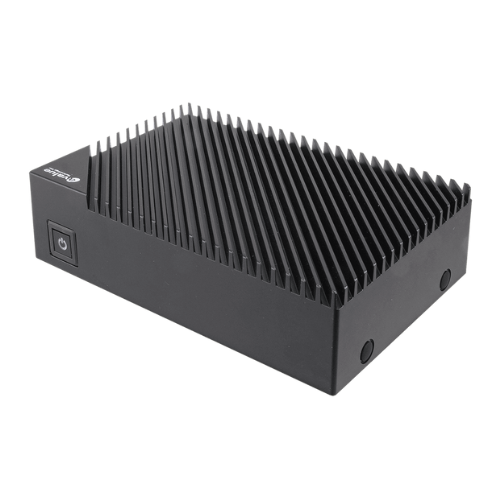

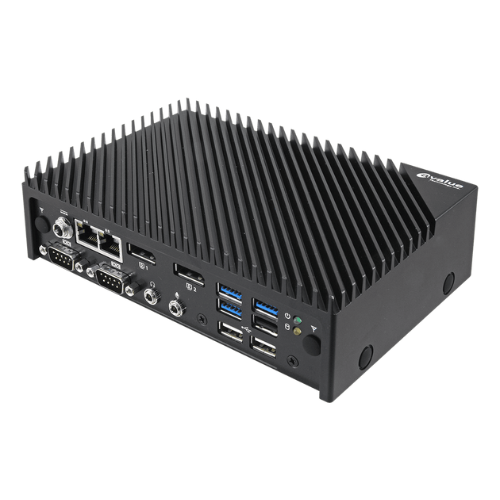

E-Catalog > Fanless Tiny System > ACS10-TGU

Features

• 11th Gen Intel® Core™ i5/i3 Tiger Lake-UP3 Processor
• Intel® Iris® Xe/ UHD Graphics Engine
• 1-260-pin DDR4 3200MHz SO-DIMM, Supports Up to 32GB
• 2-Gigabit Ethernet, 1 x 2.5GbE, 1 x 1GbE
• 2-COM Port (RS-232/422/485 & RS-232)
• 2-Audio Jack (Line-Out & Mic-In)
• 2-Storage (M.2 Key-M NVMe & M.2 Key-B SATA)
• 2-Expansion Slot (M.2 Key-E, Key-B)
• 6-USB Port (3-USB 3.2 & 3-USB 2.0)
• CE, FCC Class A, UKCA

Specifications

• CPU: 11th Gen Intel® Core™ i5/i3 Tiger Lake-UP3 Processor
• Memory: 1-260-pin DDR4 3200MHz SO-DIMM, Supports Up to 32GB
• TPM 2.0

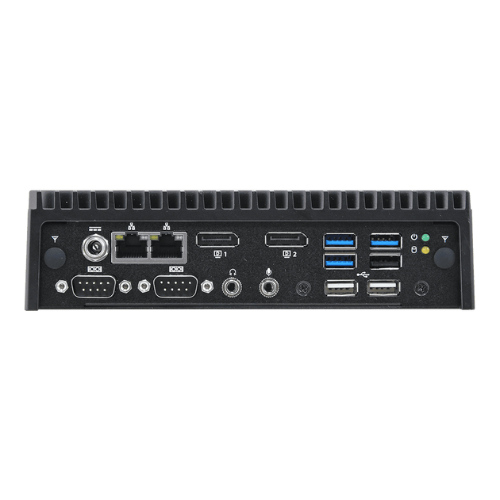

• I/O Port:
  - 1 x Power Button w/LED
  - 3 x USB 3.2 Gen.2,
  - 3 x USB 2.0
  - 1 x RS-232/422/485 (Default RS-232)
  - 1 x RS-232, 2xLAN
  - 1 x Line-Out,
  - 1 x Mic-In
  - 2xDP++
• Expansion:
  - 1 x M.2 Key-E 2230 (PCIe, USB 2.0)
  - 1 x M.2 Key-M 2280 NVMe (PCIe Gen4 x 4)
• Storage Device:
  - 1 x M.2 Key-B 2242 (SATA3)
  - 1 x M.2 Key-M 2280 NVMe (PCIe Gen4 x 4)
  ** Please select wide temperature storage

• Power Supply:
  - AC/DC Input : Lockable DC Jack
  - AC to DC Adapter 60W

• Environment:
  - With wide-temp storage: 0°C ~ 50°C (32°F ~ 122°F) with 0.5m/s air flow
  - With general storage: 0°C ~ 40°C (32°F ~ 122°F) with 0.5m/s air flow
• Dimension  (W x L x H) : 188mm x 120mm x 48mm
• Software Support:
  - Windows 11 64-bits
  - Windows 10
  - Linux
• Certification: CE, FCC Class A, UKCA
